AI Video Analytics
Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
![AI vca](/structure/image/product/features/ai-vca.png)
People Counting
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
![AI people counting](/structure/image/product/features/ai-people-counting.png)
Face Detection
The intelligent Face Detection brings security surveillance to a new level. Milesight AI Camera Series detects human faces in the monitoring scene and captures the snapshots. This function greatly enhances the monitoring efficiency by screening out the useful facial information. With the snapshots, the people in concern can be quickly located, which benefits the large population related industries such as public security, access control and business management.
![AI face detection](/structure/image/product/features/ai-face-detection.png)
Advanced Heat Map
With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series(except PTZ series) which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
![Heat Map](/structure/image/product/ai/heat-map.png)
Leading-edge H.265+ Compression
![H.265+](/structure/image/product/features/ai-H265.png)
0.001Lux Ultra Low Light
With the starlight premium technology, Milesight AI Camera Series is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
![low-light](/structure/image/product/features/Low-light.png)
3 in 1 Super WDR Pro - 140dB
Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
![AI WDR](/structure/image/product/features/ai-WDR.png)
100fps
With the industry leading frame rate reaching 100fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.
![AI high frame rate](/structure/image/product/features/100fps.png)

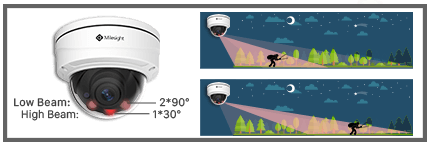

Smart IR II
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 50m(90m). Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
![smart ir AI dome](/structure/image/product/features/smartir-pro-dome.png)
1/1.8" STARVIS Starlight Sensor
Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.
![Starlight Sensor AI dome](/structure/image/product/features/sensor1.png)
4K Video Viewing Experience
Milesight AI Motorized Pro Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.
![4k AI dome](/structure/image/product/features/4k.png)
P-Iris Control
Adopting P-Iris control technology, Milesight AI Motorized Pro Dome Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.
![P-Iris](/structure/image/product/features/Piris.png)
Motorized Zoom Lens
Equipped with motorized zoom & focus lens, Milesight AI Motorized Pro Dome Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.
![camera lens dome](/structure/image/product/features/lens.png)
3rd Generation Dot Matrix IR LEDs
In order to provide superior night visibility, the AI Motorized Pro Dome Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.
![ir led design](/structure/image/product/features/Mled.png)
Clamshell Design
Aiming to reduce the installation troubles to the least, Milesight creatively introduces the clamshell design to the dome base. This revolutionary innovation enlarges the space to make cable connection a piece of cake, greatly saving efforts for installers.
![unique design](/structure/image/product/features/cDesign.png)
Smoked Dome Cover
Milesight AI Motorized Pro Dome Network Camera supports Smoked Dome Cover which is able to hide the direction of the camera for not letting people see where the camera is pointed.
![dome smoke cover](/structure/image/product/features/SmokedCover.png)

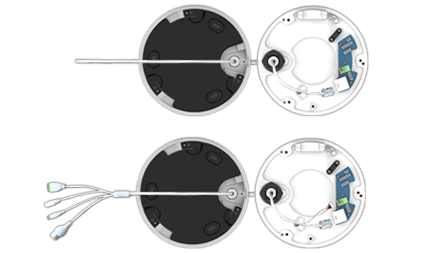

Integrated Cable Management
In the base, there are power interface, PoE port, Alarm I/O and Audio Output. Thanks to integrated cable management, it takes no effort in installation.
![dome camera cable](/structure/image/product/features/cableM.png)
Mounting Bracket
For installers, holding the camera body to secure the screws into the wall is a fatiguesome job. Being customer-oriented, Milesight optimized the hardware structure to avoid that with a light thin mounting bracket, installers could firstly secure the mounting bracket in the desired location and then insert the camera body, thus no unnecessary energy is wasted.
![mounting bracket](/structure/image/product/features/MoutingBra.png)

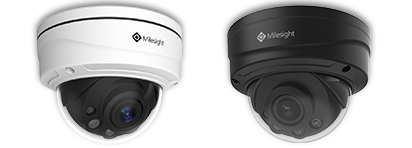

Two Colors Available
Available in White and Black, the AI Motorized Pro Dome Network Camera provides more choices for your preference.
![black white two color dome](/structure/image/product/features/IR-Pro-Dome-twoColor.png)
- MS-C2872-TF(I)PC
- MS-C2972-R(T)F(I)PC
- MS-C5372-F(I)PC
- MS-C8172-F(I)PC
- MS-C8272-F(I)PC
- MS-C2872-R(T)F(I)PA
- MS-C2972-R(T)F(I)PA
- MS-C5372-FPA
- MS-C8172-FPA
- MS-C8272-F(I)PA
-
Camera Camera Name 2MP AI Motorized Pro Dome Network Camera Image Sensor 1/2" Progressive Scan CMOS Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on WDR 140dB Super WDR Pro Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m S/N >55dB Lens Lens Lens Motorized 3∼10mm@F1.4, P-Iris(Optional) Field of View H104°∼H43°/D120°∼D50°/V59°∼V24° Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Web Access Support IE/Firefox/Chrome/Safari Browser Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 8W MAX, 10W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Dimensions Φ143mmX108.4mm Weight 1100g Warranty 3/5 Years -
Camera Camera Name 2MP AI Motorized Pro Dome Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on WDR 140dB Super WDR (Super WDR Pro is optional for T Series) Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm) S/N >55dB Lens Lens Lens Motorized 2.7∼13.5mm/3∼10.5mm/7∼22mm@F1.4, P-Iris(Optional) Field of View H115°∼H34°/D135°∼D39°/V62°∼V19°(2.7∼13.5mm), H102°∼H34°/D118°∼D38°/V56°∼V19°(3∼10.5mm), H44°∼H17°/D51°∼D19°/V24°∼V9°(7∼22mm) Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Web Access Support IE/Firefox/Chrome/Safari Browser Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 8W MAX, 10W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Dimensions Φ143mmX108.4mm Weight 1100g Warranty 3/5 Years -
Camera Camera Name 5MP AI Motorized Pro Dome Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm) S/N >55dB Lens Lens Lens Motorized 2.7∼13.5mm/3∼10.5mm/7∼22mm@F1.4, P-Iris(Optional) Field of View H100°∼H32°/D125°∼D40°/V74°∼V24°(2.7∼13.5mm), H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm) Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 2592x1944 Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Web Access Support IE/Firefox/Chrome/Safari Browser Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 8W MAX, 10W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Dimensions Φ143mmX108.4mm Weight 1100g Warranty 3/5 Years -
Camera Camera Name 4K AI Motorized Pro Dome Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m S/N >55dB Lens Lens Lens Motorized 2.7∼13.5mm@F1.4, P-Iris(Optional) Field of View H96°∼H33°/D112°∼D37°/V53°∼V18° Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 3840x2160 Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 10W MAX, 12W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Weight 1100g Dimensions Φ143mmX108.4mm Warranty 3/5 Years -
Camera Camera Name 4K AI Motorized Pro Dome Network Camera Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m S/N >55dB Lens Lens Lens Motorized 3.6∼10mm@F1.4, P-Iris(Optional) Field of View H110°∼H46°/D126°∼D54°/V61°∼V25° Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 3840x2160 Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed Face Detection Detect and capture faces, get real-time snapshots People Counting&Report Count the number of people entering or exiting, Up to 4 detection areas for regional people counting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 10W MAX, 13W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Weight 1100g Dimensions Φ143mmX108.4mm Warranty 3/5 Years -
Camera Camera Name 2MP AI Motorized Pro Dome Network Camera Image Sensor 1/2" Progressive Scan CMOS Min. Illumination Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m S/N >55dB Lens Lens Lens Motorized 3.6∼10mm@F1.4, P-Iris(optional) Field of View H104°∼H43°/D120°∼D50°/V59°∼V24° Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual (Optional for T Series) Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 8 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed People Counting&Report Count the number of people entering or exiting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 9W MAX, 11W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Weight 1100g Dimensions Φ143mmX108.4mm Warranty 3/5 Years -
Camera Camera Name 2MP AI Motorized Pro Dome Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm) S/N >55dB Lens Lens Lens Motorized 2.7∼13.5mm/3∼10.5mm/7∼22mm@F1.4, P-Iris(Optional) Field of View H115°∼H34°/D135°∼D39°/V62°∼V19°(2.7∼13.5mm), H102°∼H34°/D118°∼D38°/V56°∼V19°(3∼10.5mm), H44°∼H17°/D51°∼D19°/V24°∼V9°(7∼22mm) Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 1920x1080 Primary Stream 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 8 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed People Counting&Report Count the number of people entering or exiting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 8W MAX, 11W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Weight 1100g Dimensions Φ143mmX108.4mm Warranty 3/5 Years -
Camera Camera Name 5MP AI Motorized Pro Dome Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m(3.0∼10.5mm/2.7∼13.5mm)/ 90m(7∼22mm) S/N >55dB Lens Lens Lens Motorized 2.7∼13.5mm/3∼10.5mm/7∼22mm@F1.4, P-Iris(Optional) Field of View H100°∼H32°/D125°∼D40°/V74°∼V24°(2.7∼13.5mm), H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm) Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)N/A Video Video Max. Image Resolution 2592x1944 Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Web Access Support IE/Firefox/Chrome/Safari Browser Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed People Counting&Report Count the number of people entering or exiting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 8W MAX, 11W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Dimensions Φ143mmX108.4mm Weight 1100g Warranty 3/5 Years -
Camera Camera Name 4K AI Motorized Pro Dome Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m S/N >55dB Lens Lens Lens Motorized 2.7∼13.5mm@F1.4, P-Iris(Optional) Field of View H96°∼H33°/D112°∼D37°/V53°∼V18° Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)N/A Video Video Max. Image Resolution 3840x2160 Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240, 320x192)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed People Counting&Report Count the number of people entering or exiting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 9W MAX, 12W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Weight 1100g Dimensions Φ143mmX108.4mm Warranty 3/5 Years -
Camera Camera Name 4K AI Motorized Pro Dome Network Camera Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 50m S/N >55dB Lens Lens Lens Motorized 3.6∼10mm@F1.4, P-Iris(Optional) Field of View H110°∼H46°/D126°∼D54°/V61°∼V25° Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 3840x2160 Primary Stream 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)Tertiary Stream 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable) Privacy Masking Up to 24 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O Built-in Microphone and 1 Audio Output interface Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Intelligent
AnalyticsIntelligent
AnalyticsVideo Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed People Counting&Report Count the number of people entering or exiting System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 9W MAX, 12W MAX (With IR on) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated metal housing Weight 1100g Dimensions Φ143mmX108.4mm Warranty 3/5 Years -
* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
A/C - AI Series
