H.265+ Compresión de Vanguardia
-
Video Analítico (VCA)
Milesight VCA con 10 modos de detección proporciona un análisis de video inteligente avanzado y preciso para cámaras de red Milesight, lo que permite la función de vigilancia integral y una respuesta más rápida a diferentes escenas de monitoreo.
-
Experiencia de Visualización de Video 4K
Milesight 4K H.265+ Cámara de Red Mini Bullet Antivandálica Motorizada ofrece una resolución de hasta 4K (3840*2160, efectivamente cuatro veces mayor que Full HD) a 15 cuadros por segundo (fps), brindando a los usuarios una experiencia de visualización de video de ultra alta definición.
-
Lente Motorizada Avanzada
Con una lente motorizada flexible (2.7~13.5mm), la cámara puede capturar sujetos distantes en lugar de fijarla en la escena específica sin flexibilidad. La lente ultra gran angular ofrece un campo de visión más amplio para ampliar los horizontes, dejando atrás las experiencias de visión estrecha.
-
IP67&IK10
Con un fuerte contraste con el tamaño mini, H.265+ Cámara de Red Mini Bullet Antivandálica Motorizada presenta la prueba de intemperie líder en la industria con clasificación IP67 y prueba de vandalismo con clasificación IK10, que permiten proteger la cámara contra impactos adversos para garantizar un rendimiento robusto.
-

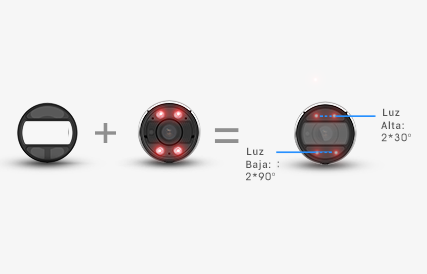

Tecnología Inteligente de IR II
Para maximizar el rendimiento IR, H.265+ Cámara de Red Mini Bullet Antivandálica Motorizada innovaba tanto en la estructura como en la tecnología. La avanzada tecnología Inteligente de IR II garantiza el rendimiento IR con intensidad de iluminación ajustable. La transmitancia de la luz infrarroja aumenta considerablemente con el panel IR antirreflectante que está bien diseñado para un mejor efecto IR.
-
0.001Lux Ultra Luz Baja
H.265+ Cámara de Red Mini Bullet Antivandálica Motorizada es capaz de entregar imágenes de colores con gran detalles incluso en entornos con poca luz que alcanzan 0.002Lux (Color) o 0Lux (B/W), y entornos de luz infrarroja cercana sin ninguna iluminación adicional.
-
3 en 1 Super WDR Pro - 140dB
Milesight actualizó 3 en 1 Super WDR Pro emite tres cuadros por línea, lo que puede brindar más detalles, especialmente sujetos en movimiento. Además, mejora enormemente la calidad de la imagen para reducir manchas y puntos ruidosos. La relación entre los valores de señal de luz más brillante divididos por los valores de señal de luz más oscura es de hasta 140dB.
-
120fps
Con una velocidad de fotogramas líder en la industria que alcanza los 120fps, Milesight cámara de red puede capturar fácilmente imágenes sin latencia a pesar del movimiento de alta velocidad.
-
Diseño Único de Estructura
La cámara presenta un diseño mecánico de 3 ejes para un ajuste rápido y fácil del ángulo de visión de la cámara, lo que permite colocar la cámara con precisión. Otro aspecto destacado de la estructura radica en el soporte de montaje que es capaz de ocultar los cables, ofreciendo una protección completa del cable contra daños por agua, polvo o golpes.
-

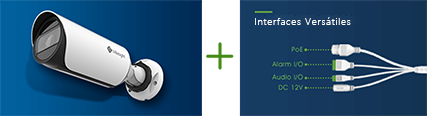

Interfaces Versátiles
Varias interfaces como PoE, DC, E/S de Audio y E/S de Alarma están disponibles en la versión de interfaz múltiple, que ofrecen más opciones para una administración fácil y diversas necesidades.
-

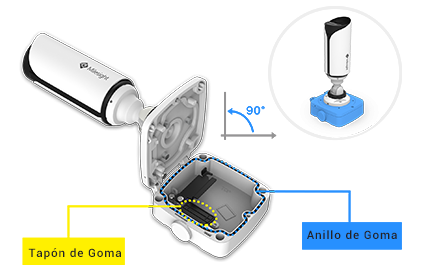

Caja de Conexiones Integrada(Opcional)
La caja de conexiones integrada bien diseñada garantiza una instalación eficiente y simple. Aumenta el espacio para hacer que la conexión del cable sea ordenada y tan fácil como un pan comido. Con la ayuda de los tapones de goma y el anillo de goma que garantizan una capacidad Impermeable con clasificación IP67, la caja de conexiones integrada puede ofrecer un funcionamiento estable en cualquier condición difícil.
-
SIP/VoIP Soportado
Milesight H.265+ Cámara de Red Mini Bullet Antivandálica Motorizada presenta la función SIP/VoIP líder en la industria y transmisión de video para teléfonos móviles y teléfonos de video.
-
Camera
Name2MP H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH99°∼H44°/D114°∼D50°/V56°∼V24°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz(44.1KHz is available for all except R Series)
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8.7W MAX, 12.2W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ76mmX239.5mm
Weight825g
Warranty3/5 Years
-
Camera
Name2MP H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q & T Series)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of ViewH88°∼H32°/D102°∼D37°/V49°∼V18°(2.7∼13.5mm), H87°∼H29°/D99°∼D32°/V45°∼V14°(3∼10.5mm), H34°∼H14°/D37°∼D15°/V19°∼V7°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate120fps@(1920x1080)(Optional for Q Series), 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz(44.1KHz is available for all except R & T & Q Series)
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 11.5W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ76mmX239.5mm
Weight825g
Warranty3/5 Years
-
Camera
Name5MP H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.003Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of ViewH84°∼H30°/D105°∼D37°/V62°∼V22°(2.7∼13.5mm), H81°∼H27°/D102°∼D34°/V60°∼V20°(3∼10.5mm), H34°∼H13°/D42°∼D17°/V26°∼V10°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution2592x1944
Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series), 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz(32KHz and 48KHz are available for H Series)
Audio Bit Rate16~96kbps, 16~256kbps(Optional for H Series)
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8.5W MAX, 12W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ76mmX239.5mm
Weight825g
Warranty3/5 Years
-
Camera
Name4K H.265 Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 50m
S/N>55dB
Lens
LensMotorized 2.7∼13.5mm @F1.4, P-Iris(Optional)
Field of ViewH93°∼H32°/D109°∼D37°/V52°∼V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840x2160
Frame Rate30fps@(3840x2160)(Optional for H Series), 15fps@(3840x2160), 30fps@(3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.2W MAX, 7W MAX (With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing
DimensionsΦ76mmX239.5mm
Weight825g
Warranty3/5 Years
-
* Naming Convention
H - 30fps@5MP/4K Series
Q - High Frame Rate (120fps)
T - High Frame Rate (90fps)
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
B - H.265 Compression
