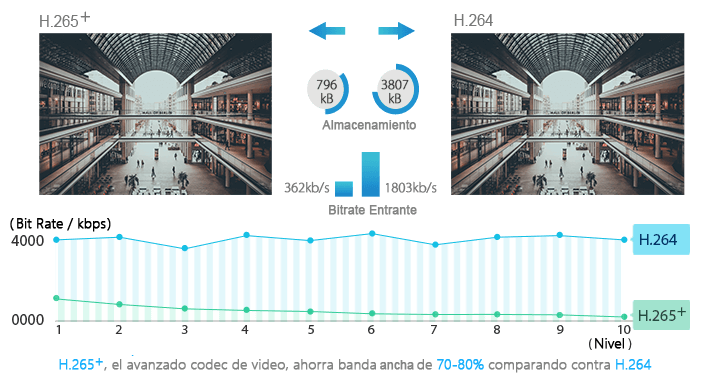

H.265+ Compresión de Vanguardia
-
Video Analítico (VCA)
Milesight VCA con 10 modos de detección proporciona un análisis de video inteligente avanzado y preciso para cámaras de red Milesight, lo que permite la función de vigilancia integral y una respuesta más rápida a diferentes escenas de monitoreo.
-
Experiencia de Visualización de Video 4K
Milesight 4K H.265+ Cámara de Red Pro Bullet Motorizada ofrece una resolución de hasta 4K (3840*2160, efectivamente cuatro veces mayor que Full HD) a 15 cuadros por segundo (fps), brindando a los usuarios una experiencia de visualización de video de ultra alta definición.
-
1/1.8" STARVIS Starlight Sensor
Equipada con el sensor STARVIS de 1/1.8" líder en la industria, la Cámara de Red Milesight, que soporta 2MP/4K, mejora todos los aspectos de la calidad de imagen, incluyendo una Mejor Sensibilidad con poca luz.
-
0.001Lux Ultra Luz Baja
La Starlight Cámara es capaz de entregar imágenes de colores con gran detalles incluso en entornos con poca luz que alcanzan 0.001Lux (Color) o 0Lux (B/W), y entornos de luz infrarroja cercana sin ninguna iluminación adicional.
-
Inteligente IR II
La tecnología LED IR se ha actualizado para proporcionar videos con un rango de visualización de hasta 60m(100m). Dos LED en la parte superior funcionan como High Beam, mientras que los otros dos en la parte inferior como Low Beam para una mejor claridad y calidad de imagen, independientemente de la distancia al objeto. Además, el brillo del haz bajo y del haz alto se puede ajustar de forma manual o automática en función de la relación de zoom.
-
3 en 1 Super WDR Pro - 140dB
Milesight actualizó 3 en 1 Super WDR Pro emite tres cuadros por línea, lo que puede brindar más detalles, especialmente sujetos en movimiento. Además, mejora enormemente la calidad de la imagen para reducir manchas y puntos ruidosos. La relación entre los valores de señal de luz más brillante divididos por los valores de señal de luz más oscura es de hasta 140dB.
-
120fps
Con una velocidad de fotogramas líder en la industria que alcanza los 120fps, Milesight cámara de red puede capturar fácilmente imágenes sin latencia a pesar del movimiento de alta velocidad.
-
Control P-Iris
Al adoptar la tecnología de control P-Iris, H.265+ Cámara de Red Pro Bullet Motorizada es capaz de optimizar la apertura del iris en todas las condiciones de iluminación, ofreciendo imágenes con mejor contraste, claridad, resolución y profundidad de campo.
-
IP67&IK10
Soportando impermeable con clasificación IP67 y antivandálica con clasificación IK10, que son el nivel líder de la industria, la cámara está bien protegida contra impactos adversos para garantizar el rendimiento.
-
3ra Generación de Dot Matrix LEDs IR
Con el fin de proporcionar una visibilidad nocturna superior, H.265+ Cámara de Red Pro Bullet Motorizada emplea la 3ra Generación de Dot Matrix LEDs IR, garantizando esencialmente una excelente calidad de imagen, larga vida útil y eficiencia energética.
-
Zoom Lentes Motorizadas
Equipada con zoom & enfoque lentes motorizadas, H.265+ Cámara de Red Pro Bullet Motorizada permite el control remoto de la distancia focal, el iris y el enfoque mediante el uso de un controlador de lente, que es perfecto para la vigilancia a larga distancia en áreas como estacionamientos, autopistas y puertos.
-
Membrana PTFE
Aplicando la membrana PTFE a los orificios de ventilación, la carcasa de H.265+ Cámara de Red Pro Bullet Motorizada está diseñada para mantener la humedad y el polvo al tiempo que permite que el aire fluya dentro y fuera del dispositivo, lo que garantiza efectivamente la igualación de la presión en los gabinetes y evita el empañamiento y una acumulación de condensación de las lentes, garantizando una claridad de imagen suprema.
-
Diseño Único
En el cuerpo de H.265+ Cámara de Red Pro Bullet Motorizada hay una ranura para tarjeta SD y un botón de reinicio, que ofrece el máximo disfrute de la usabilidad y extensibilidad. En la parte trasera hay un soporte ajustable de 3 ejes, que se adapta perfectamente a una instalación ordenada y flexible.
-
Soporte de gestión de cables integrado
En la base del soporte base, hay interfaz de alimentación, puerto PoE y otras interfaces. Gracias a la gestión integrada de cables. No requiere esfuerzo en la instalación.
-
Caja de Conexiones Integrada
A: El diseño creativo de la cubierta minimiza los problemas de instalación y amplía el espacio para hacer que la conexión del cable sea pan comido. B: El diseño redondo de la caja de conexiones oculta los cables en el interior, lo que hace que se vea más ordenada y clara.
-
SIP/VoIP Soportado
Milesight H.265+ Cámara de Red Pro Bullet Motorizada presenta la función SIP/VoIP líder en la industria y transmisión de video para teléfonos móviles y teléfonos de video.
-
Camera
Name2MP H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH96°∼H42°/D111°∼D48°/V55°∼V23°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz(44.1KHz is available for all except R& T & Q Series)
Audio Bit Rate16~96kbps, 16~256kbps(Optional for H Series)
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 10W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name2MP H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR (Super WDR Pro is optional for Q & T Series)
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm)
S/N>55dB
Lens
LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of ViewH93°∼H33°/D107°∼D38°/V52°∼V18°(3∼10.5mm), H92°∼H32°/D107°∼D37°/V51°∼V18°(2.7∼13.5mm), H40°∼H16°/D46°∼D19°/V23°∼V9°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution1920x1080
Frame Rate120fps@(1920x1080)(Optional for Q Series), 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz(44.1KHz is available for all except R & T & Q Series)
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 10.5W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name5MP H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm)
S/N>55dB
Lens
LensMotorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional)
Field of ViewH90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution2592x1944
Frame Rate30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080)(Optional for H Series), 20fps@(2592x1944), 30fps@(2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz(32KHz and 48KHz are available for H Series)
Audio Bit Rate16~96kbps, 16~256kbps(Optional for H Series)
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5W MAX, 9W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name4K H.265 Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m
S/N>55dB
Lens
LensMotorized 2.7∼13.5mm@F1.4, P-Iris(Optional)
Field of ViewH96°∼H33°/D112°∼D37°/V53°∼V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840×2160
Frame Rate30fps@(3840x2160)(Optional for H Series), 15fps@(3840x2160), 30fps@(3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption5.4W MAX, 8.2W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
Camera
Name4K H.265 Motorized Pro Bullet Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m
S/N>55dB
Lens
LensMotorized 3.6∼10mm@F1.4, P-Iris(Optional)
Field of ViewH110°∼H46°/D125°∼D54°/V61°∼V25°
MountΦ14
Focus ControlAuto/Manual
Iris Control
(Optional for I Series)Auto/ManualVideo
Max. Image Resolution3840×2160
Frame Rate30fps@(3840×2160, 3072×2048, 2592x1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/48KHz
Audio Bit Rate16~256kbps(Optional for H Series
Two-way AudioSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6.3W MAX, 9W MAX(With IR on)
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated metal housing (Optional)
Dimensions134mmX126mmX285mm
Weight1080g
Warranty3/5 Years
-
* Naming Convention
H - 30fps@5MP/4K Series
Q - High Frame Rate (120fps)
T - High Frame Rate (90fps)
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
B - H.265 Compression
![icon](/structure/image/product/download/pdf_icon.png)
Milesight H.265 Motorized Pro Bullet Network Camera Datasheet_es.pdf
![icon](/structure/image/product/download/pdf_icon.png)
A Milesight Technology Moment-Waterproofing Cable Management Design.pdf
![icon](/structure/image/product/download/pdf_icon.png)
Milesight Network Camera User Manual.pdf
![icon](/structure/image/product/download/pdf_icon.png)
Milesight Network Camera Quick Start Guide.pdf
